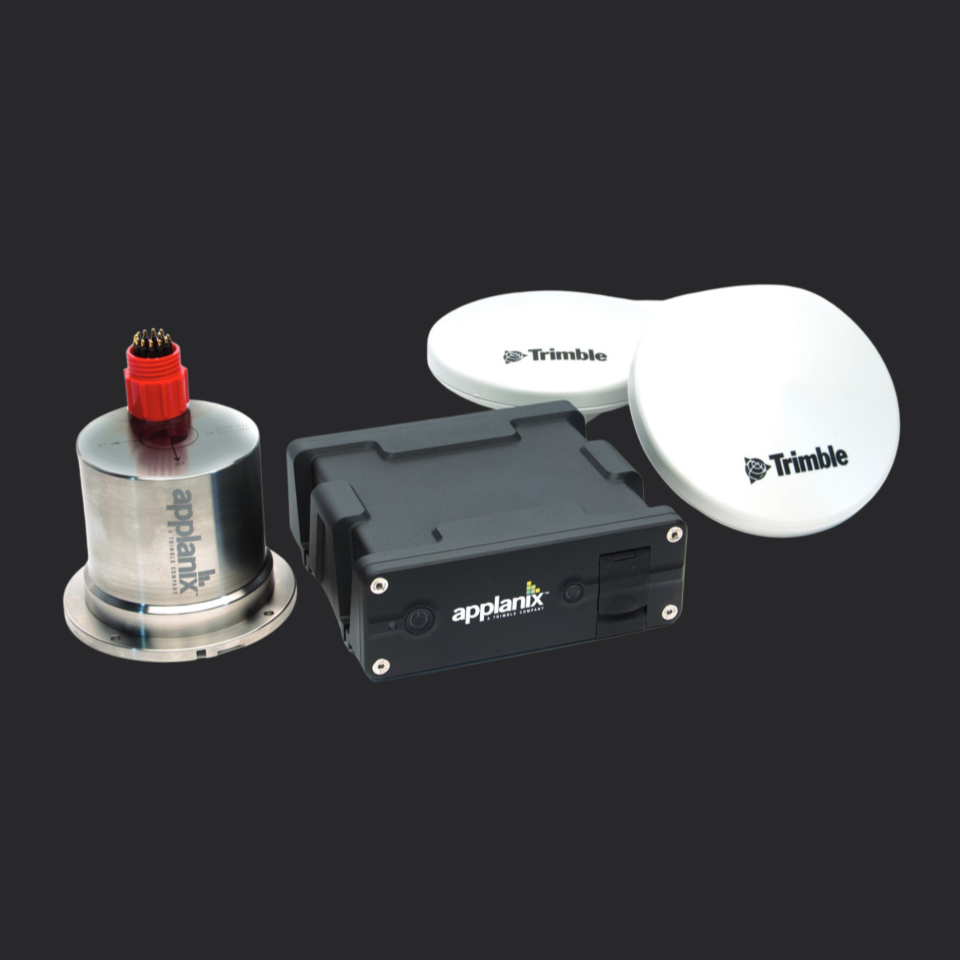

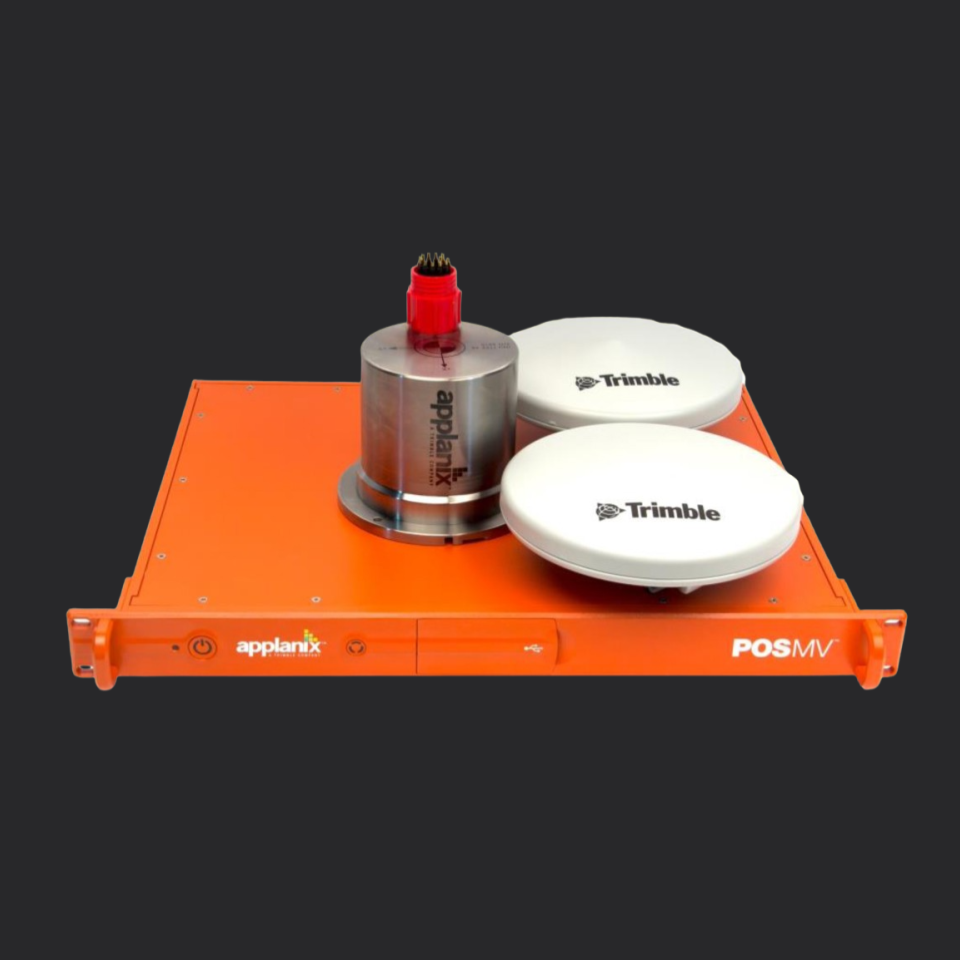

APPLANIX POS MV

POS MV is a user-friendly, turnkey system designed and built to provide accurate position, heading, attitude, heave, and velocity data of your marine vessel and remote sensing equipment. With over one thousand systems deployed worldwide, POS MV is field-tested and proven in all conditions.

POS MV blends GNSS data with angular rate and acceleration data from an IMU, and heading from GPS Azimuth Measurement System (GAMS) to produce a robust and accurate full six degrees-of-freedom position and orientation solution.

POS MV comes in 4 models:

• POS MV SurfMaster / SurfMaster One

• POS MV WaveMaster II

• POS MV OceanMaster

• POS MV Elite

All POS MV models are designed for use with multibeamsonar systems, enabling adherence to IHO (International Hydrographic Survey) standards on sonar swath widths of greater than ± 75 degrees under all dynamic conditions. At the entry-level is the POS MV SurfMaster, which delivers robust georeferencing for small platforms, both manned and unmanned. SurfMaster is available both with a remote IMU and in single-enclosure form factor. Fully supported by Applanix’ industry leading post processing soft ware, POSPac MMS, SurfMaster delivers roll and pitch accuracy to 0.03 degrees. Wavemaster II and OceanMaster are designed for increasingly difficult conditions and performance requirements. Th e POS MV Elite is for users seeking the very highest level of performance available to the industry.
