UNIVERSAL SONAR MOUNT

BOW-STERN

BOW-STERN

The Bow-Stern Mount is USM's specialty mount, sharing the same platform as the Hightower. Similarly, this model is recommended for systems with Z-Pole lengths up to 10', bearing loads up to 150lbs.

Just like the  Compact, Megatower, and XL, the Bow-Stern uses a vertical lead-screw mechanism called the Shear Block Tower to engage and disengage the Z-Pole, also serving as a breakaway safety feature in the event of a collision.

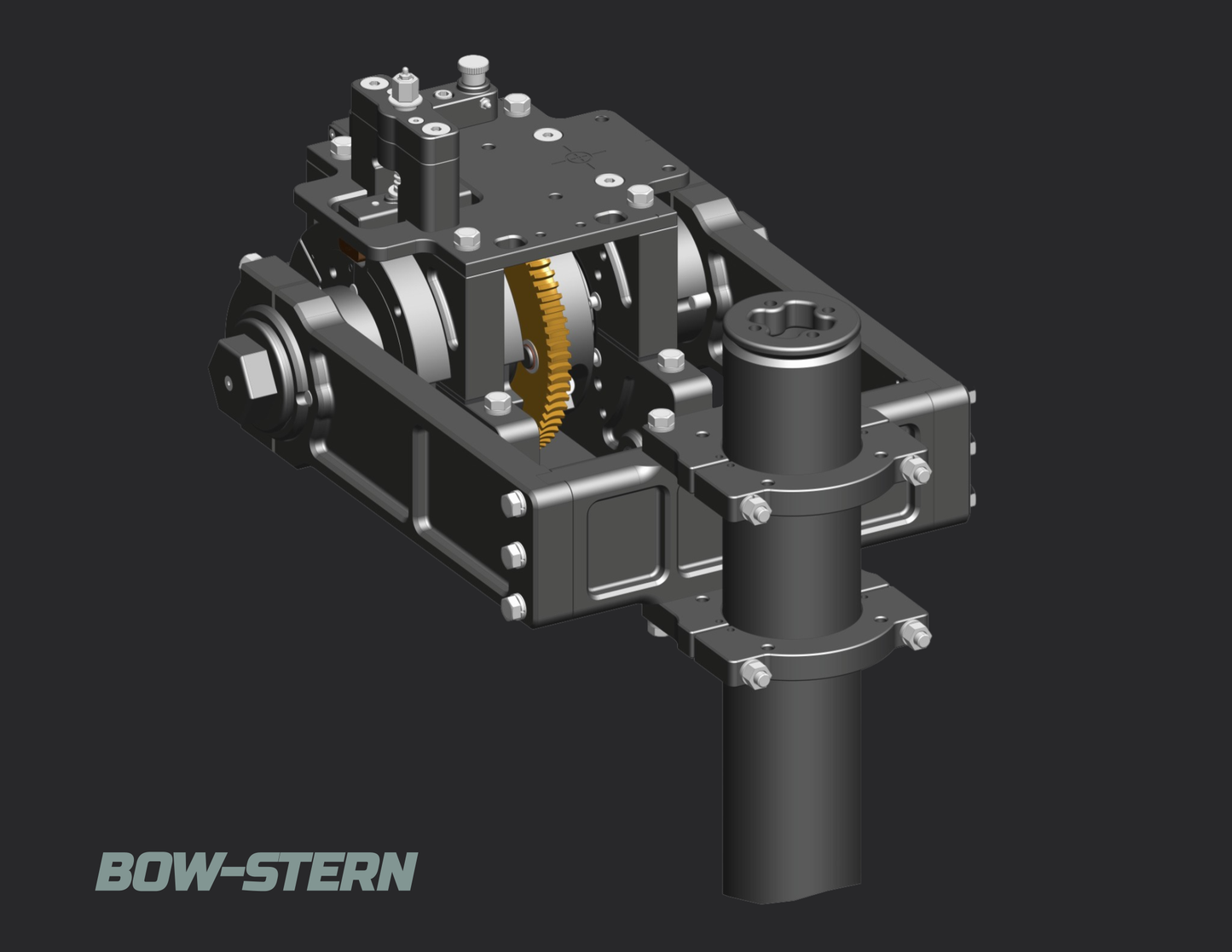

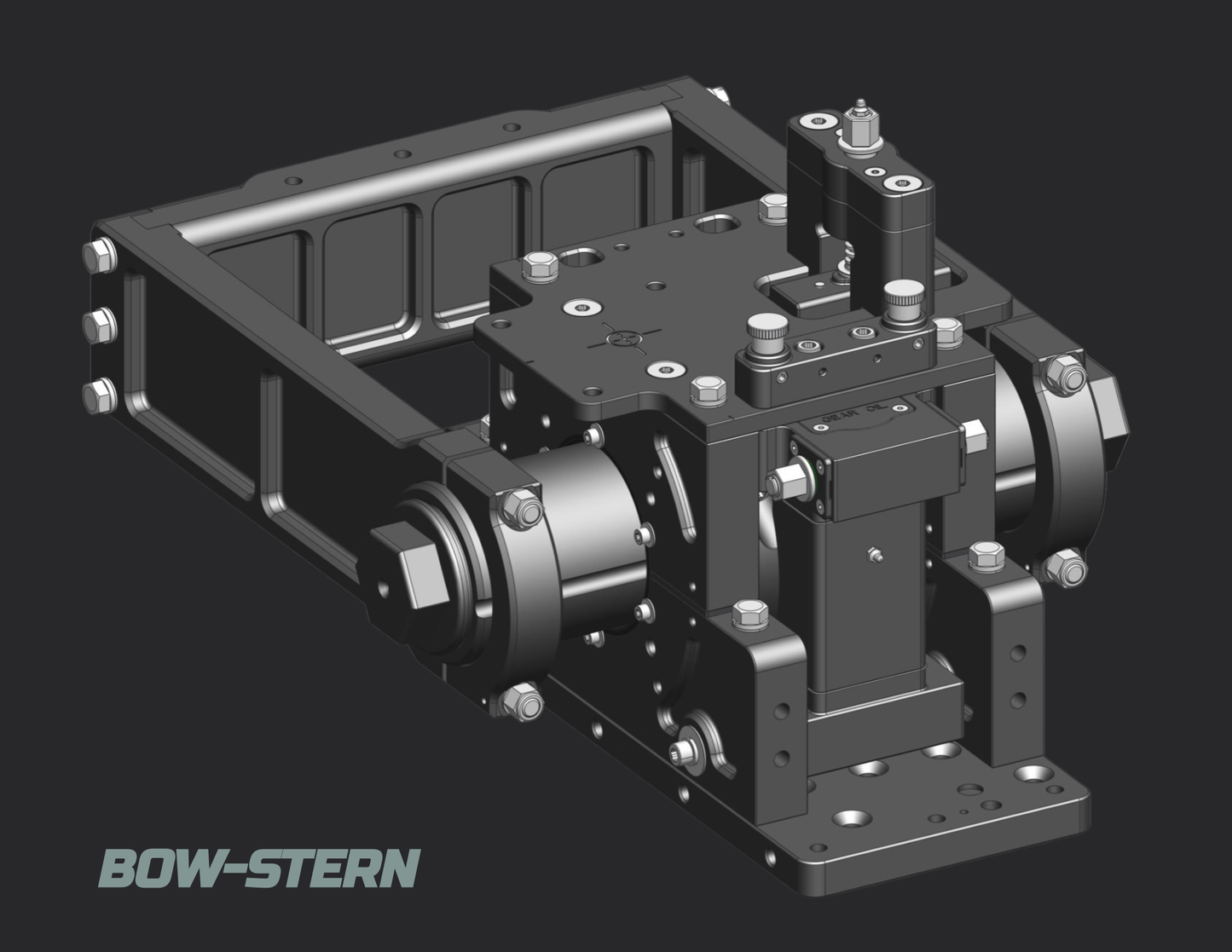

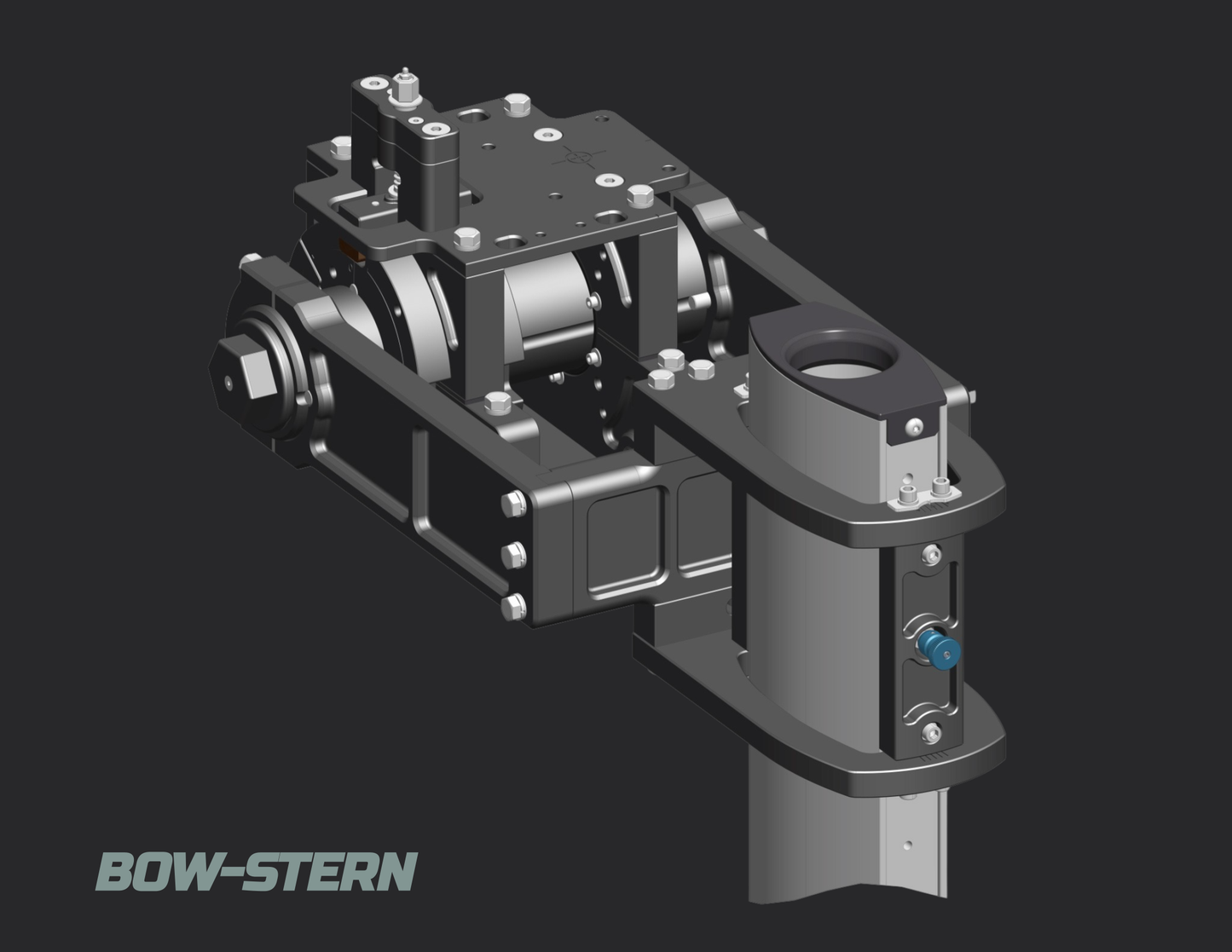

    BOW-STERN GALLERY

    View full details

    SHEAR BLOCK TOWER

    • Calibrated breakaway design is industry-tested, preserving assets and keeping crew members safe
    • Safe and audible release of sonar apparatus during collision or snag with submerged hazard
    • Vertical lead screw engagement helps make raising & lowering the sonar easy
    • Repeatable & servicable, with no need to recalibrate

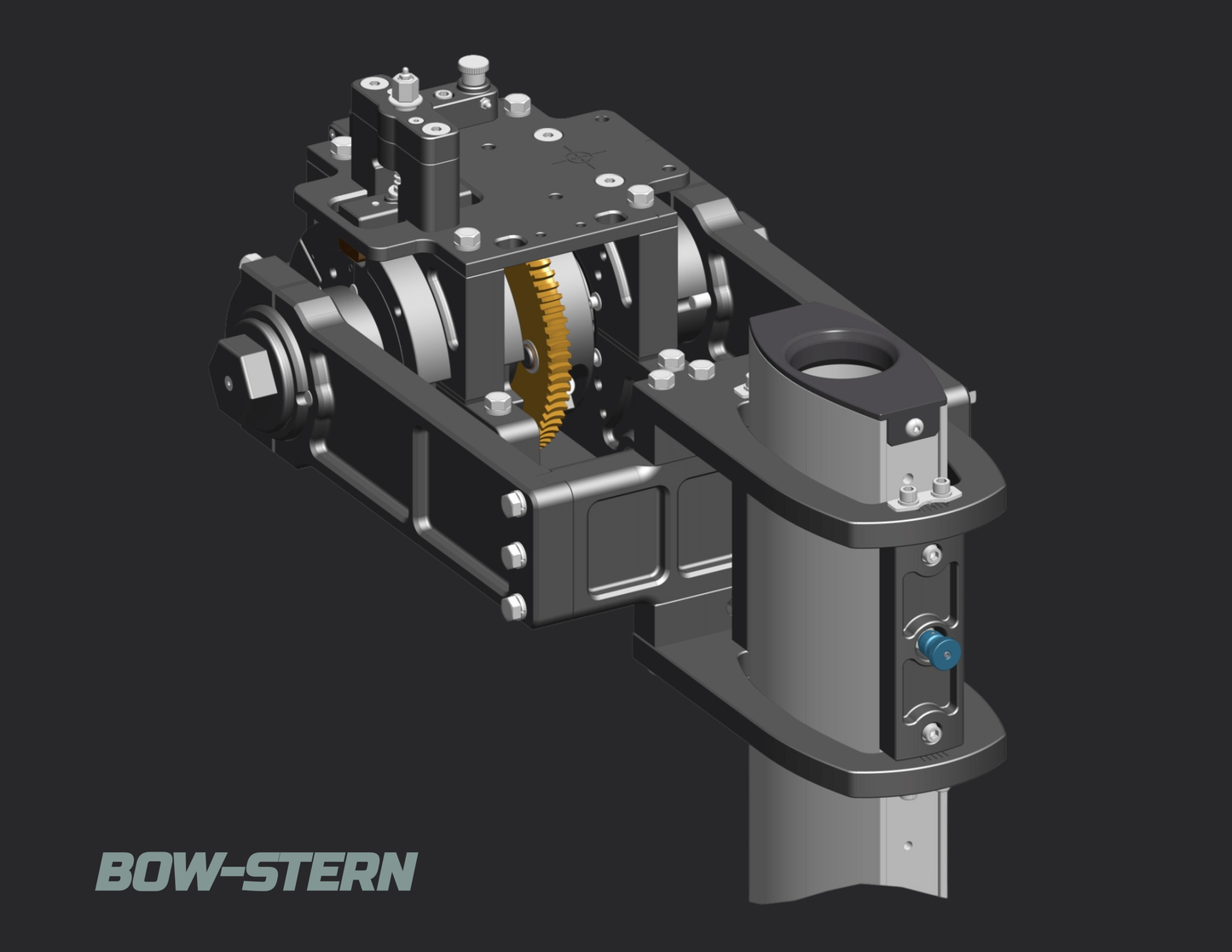

    GEAR DRIVE OPTION

    • Substitues for a Davit Crane in most cases
    • 1400:1 gear reduction; lifts the heaviest sonar equipment
    • Actuates with an everyday hand drill
    • Configurable to accomodate mount placment
    • One man operation

    GEAR DRIVE GALLERY
