UNIVERSAL SONAR MOUNT

COMPACT

COMPACT

DOCUMENTATION

QUICK START MANUAL

PITCH & REACH MANUAL

HINGE MANUAL

3.5" FOIL MANUAL

The Compact is USM's lightest, most portable mount with the ability to be taken on international flights. This model is recommended for systems with Z-Pole lengths up to 7', bearing loads up to 45lbs.

Just like the Hightower, Megatower, and XL, the Compact uses a vertical lead-screw mechanism called the Shear Block Tower to engage and disengage the Z-Pole, also serving as a breakaway safety feature in the event of a collision.

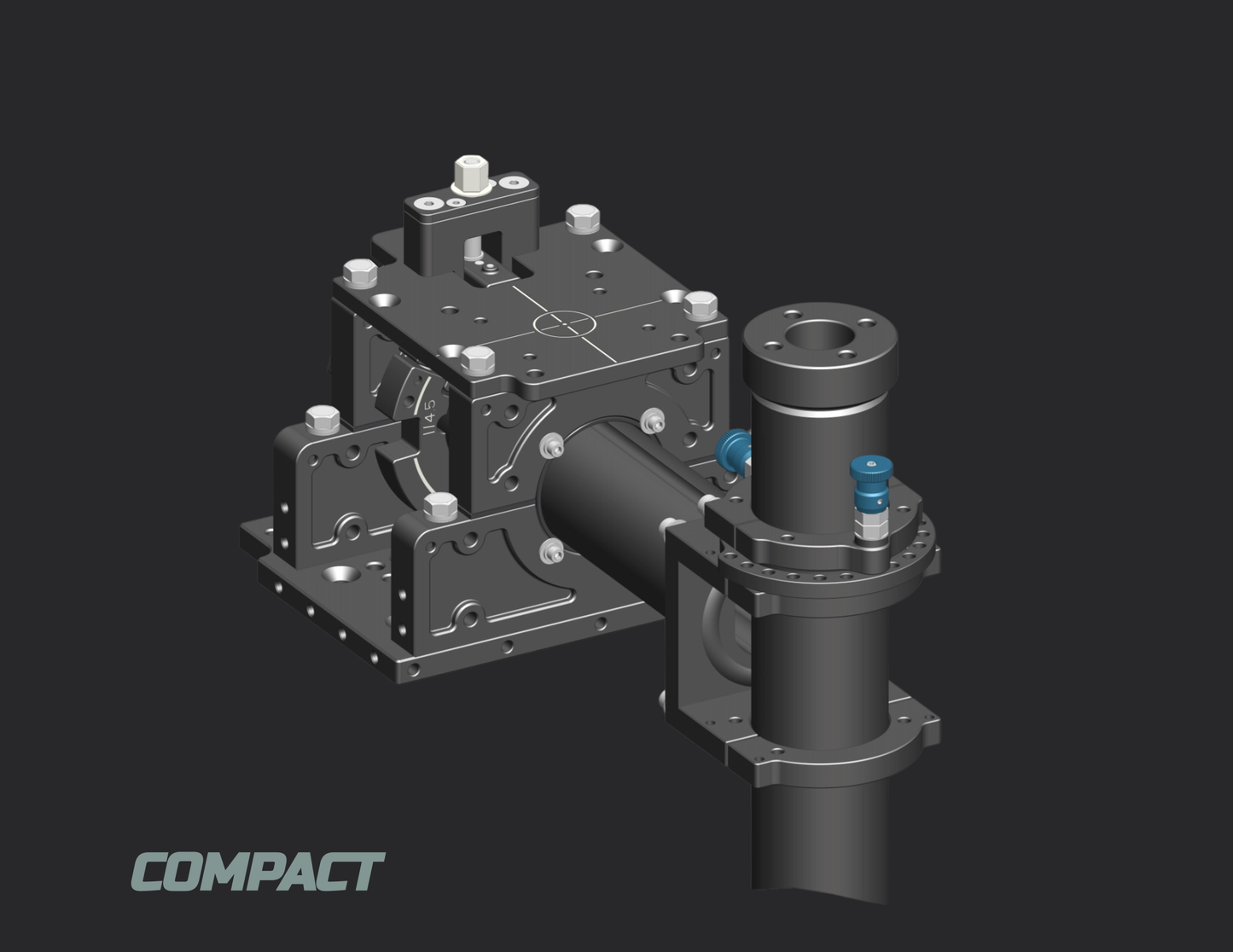

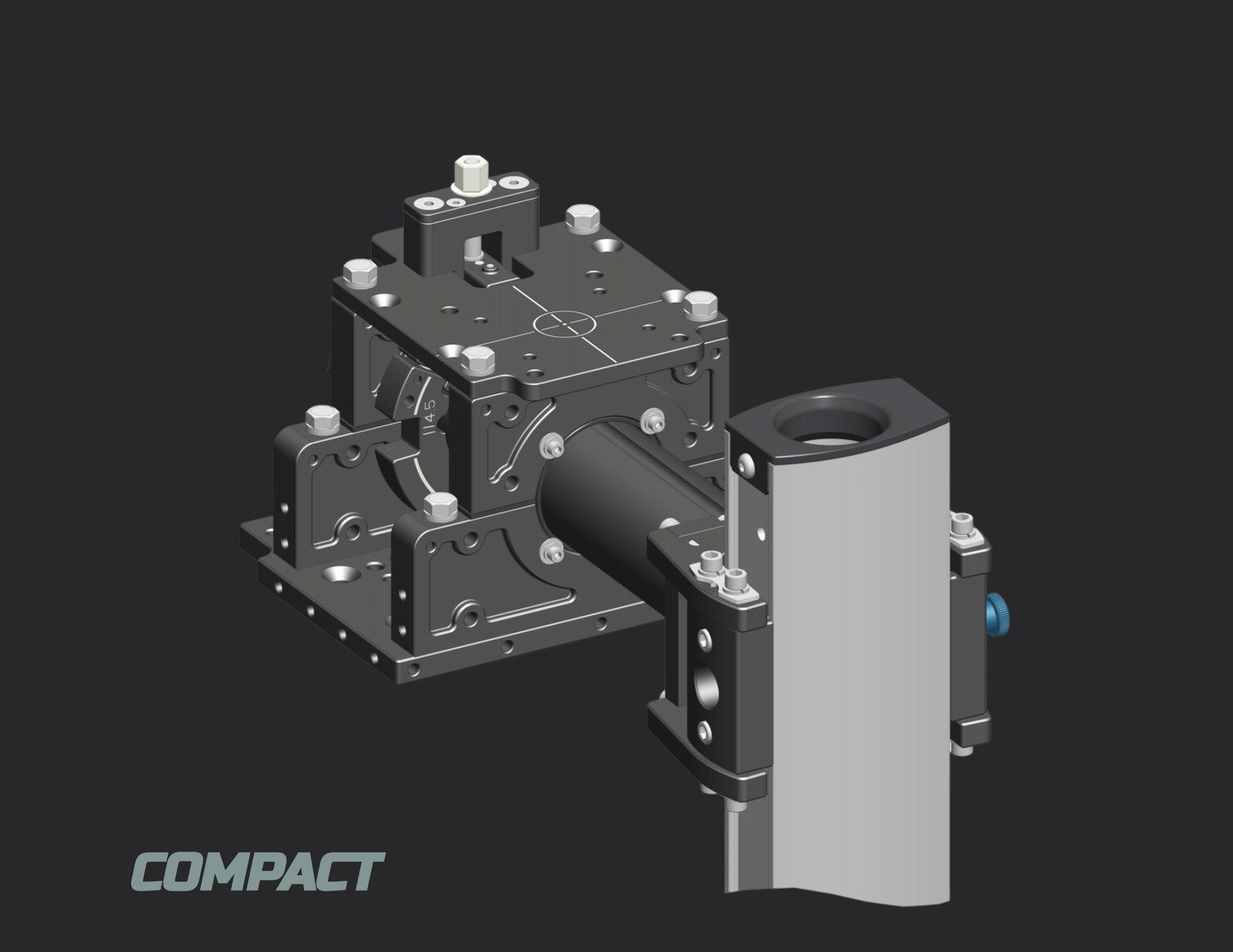

COMPACT GALLERY

View full details

SHEAR BLOCK TOWER

  • Calibrated breakaway design is industry-tested, preserving assets and keeping crew members safe
  • Safe and audible release of sonar apparatus during collision or snag with submerged hazard
  • Vertical lead screw engagement helps make raising & lowering the sonar easy
  • Repeatable & servicable, with no need to recalibrate

HINGE OPTION

  • Keeps equipment inboard for safe transit and storage
  • Repeatable with no need to recalibrate
  • Allows for easie of service from the deck
  • Integrated hardware storage to prevent loss
  • One-man operation

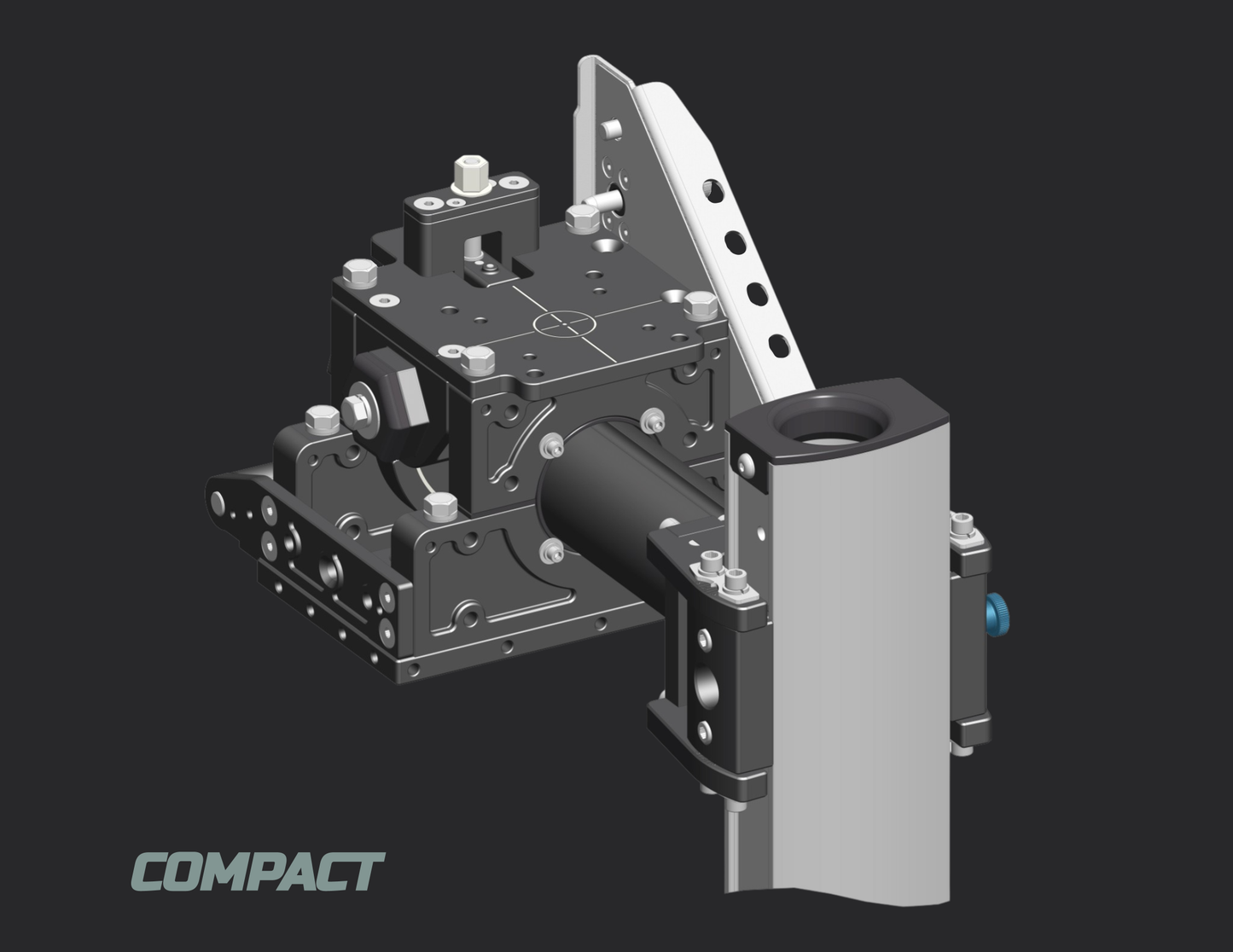

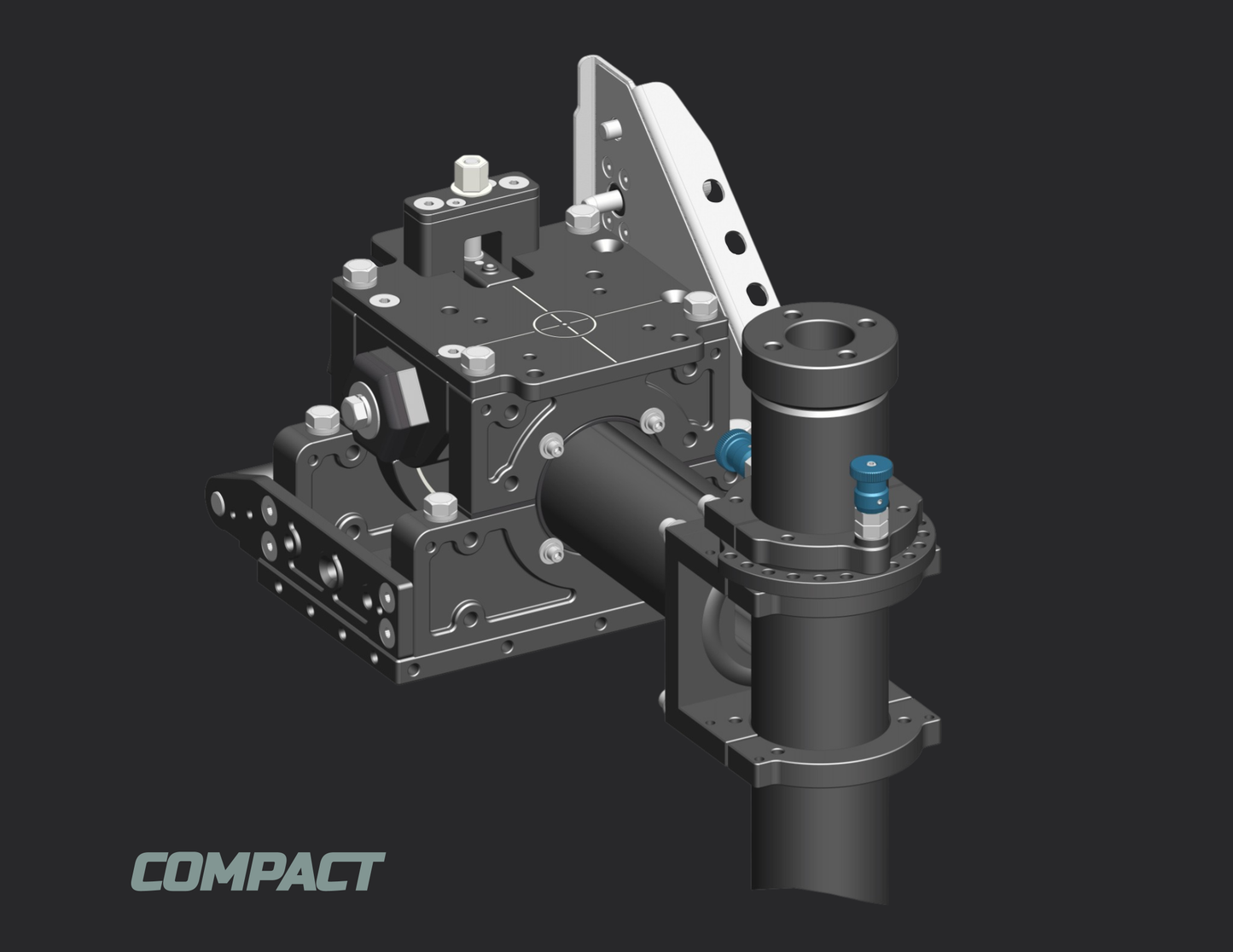

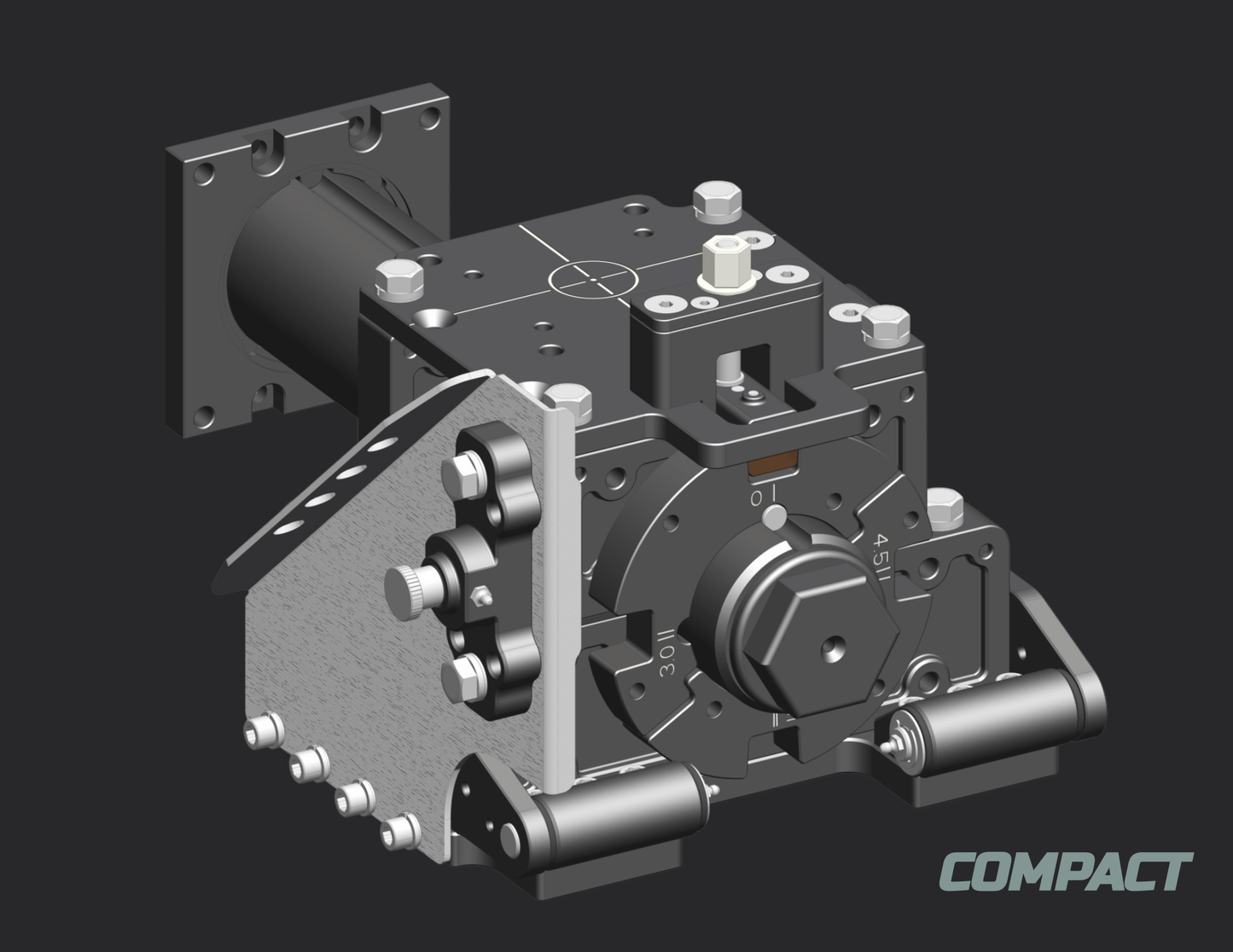

HINGE GALLERY
