DUAL HEAD ADAPTER
DUAL HEAD ADAPTER

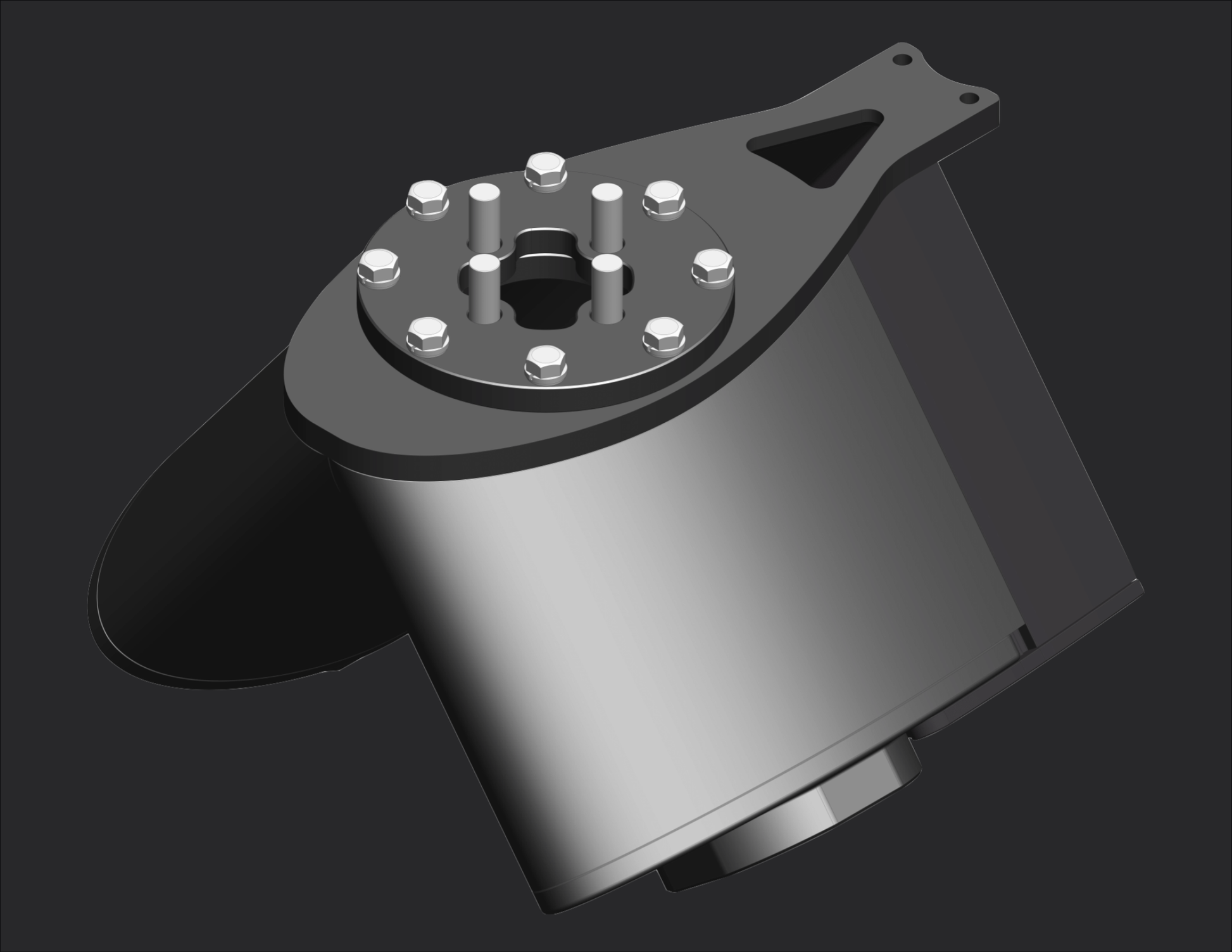

The Dual Head Adapter provides two USM 4-Hole mating surfaces at the bottom of the Z-Pole, while preserving the hydrodynamic profile. A USM 2-Hole SVS Mount extends rearward just beyond the Tail Section.

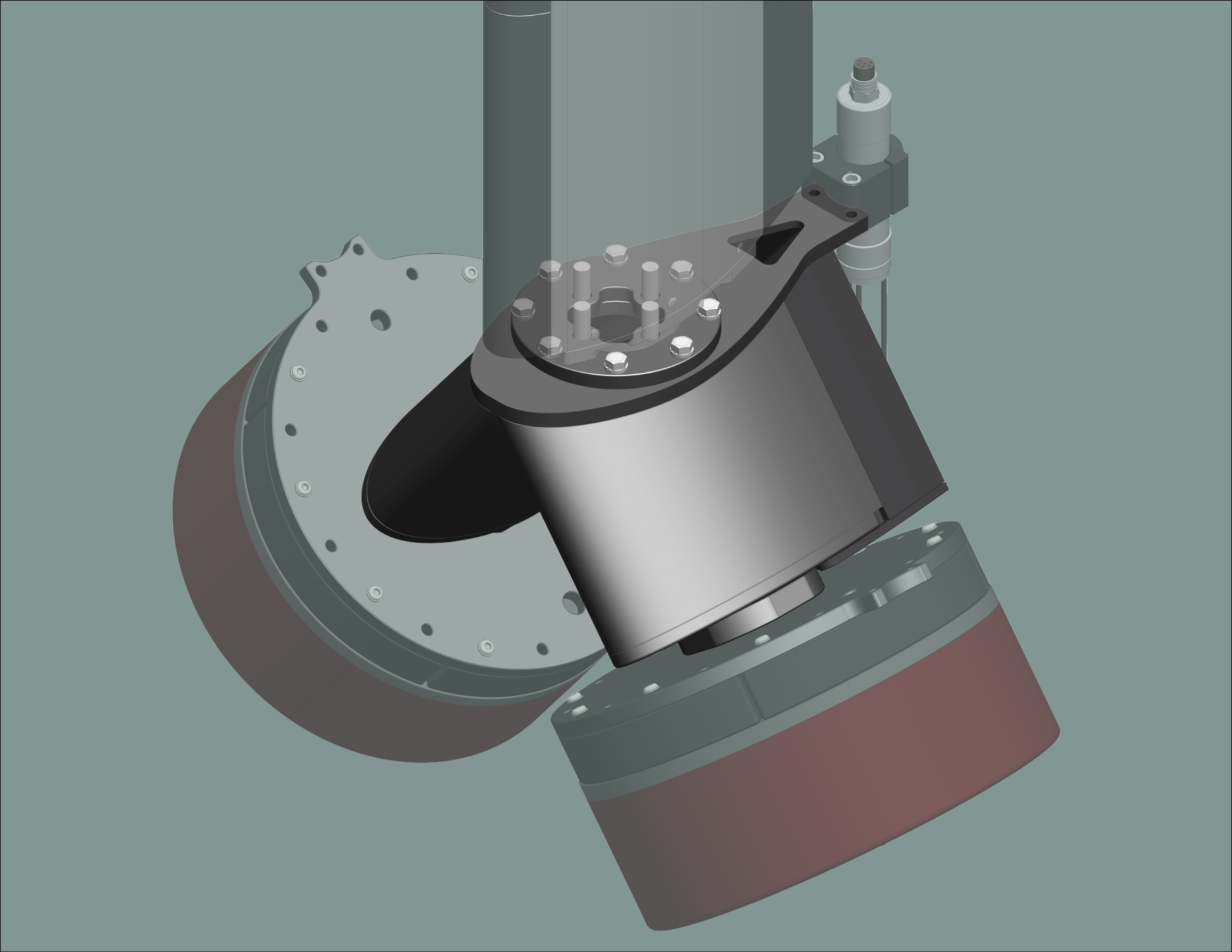

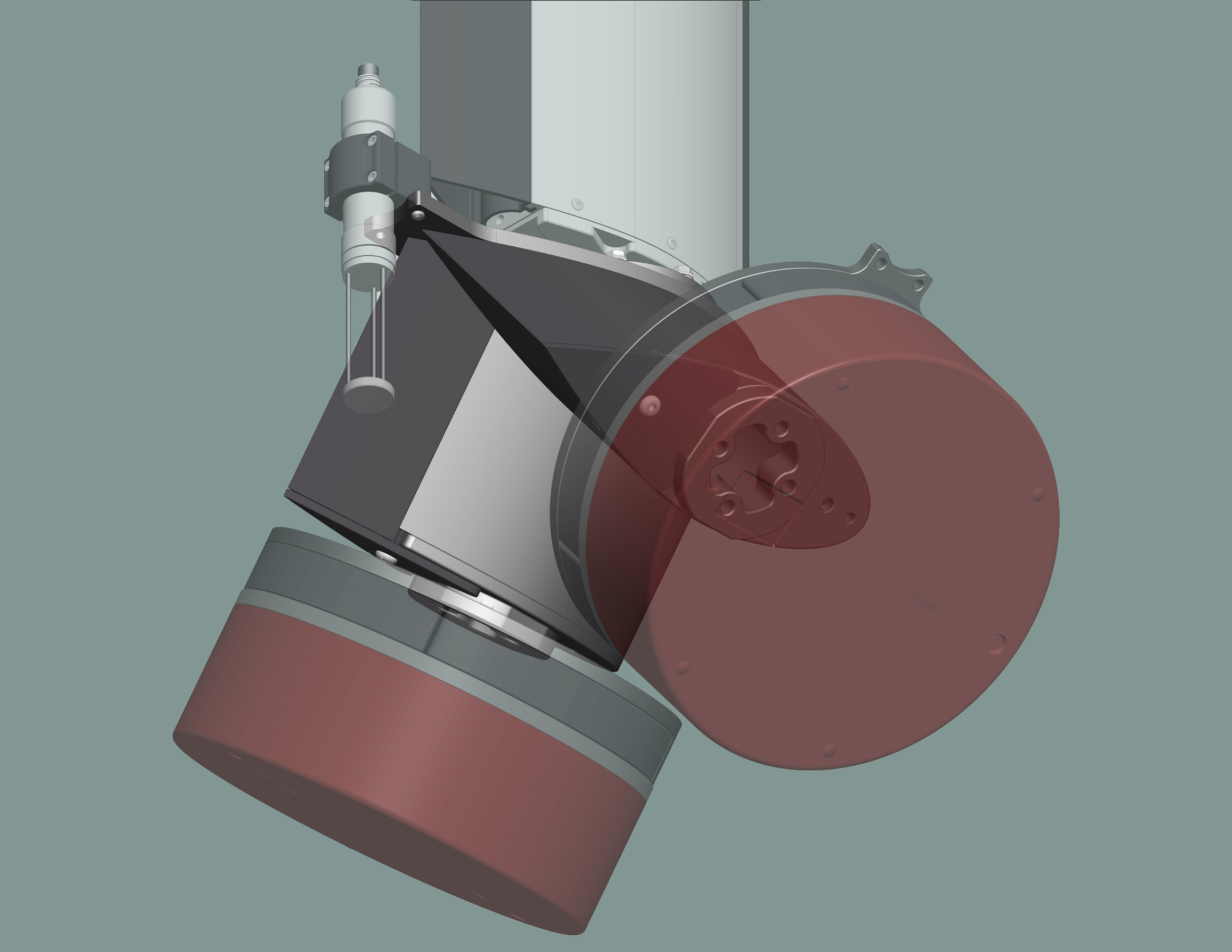

Note: Kongsberg 2040C Dual Head Systems are typically configured at an angle of 35° between one another, represented here. However, USM is able to provide alternate configurations depending upon your specific application.
-
