KONGSBERG EM 2040 MKII

KONGSBERG EM 2040 MKII

KEY FACTS

The system fulfills, and even surpasses, IHO-S44 Special Order and the more stringent LINZ specification. The EM 2040 was the first 3-sector broadband multibeam echo sounder in the market, now available as a 200 - 700 kHz system. The operator can on the fly choose the best operating frequency for the application: 300 kHz for near bottom, 200 kHz for deeper waters and 400 - 700 kHz for very high resolution inspection. 600 kHz wide area high frequency mapping mode offers an unprecedented 100-120° swath width. 700 kHz inspection mode provides the highest resolution available contained within a narrow 30° swath.
By alternating between the frequency modes per ping, the system is capable of providing the operator with Multi Frequency Backscatter of up to 5 frequencies in a single pass. The same functionality allows the system to alternate between a full swath mode and a high resolution mode providing full coverage while maintaining ultra high resolution over a target.

Due to the large operating bandwidth, the system has an output sample rate up to 60 kHz. The system can effectively operate with very short pulse lengths, the shortest pulse being 14 microseconds giving a raw range resolution (CT/2) of 10.5 mm. The angular coverage for the 200 and 300 kHz is up to 170°, with coverage up to 8 times water depth on a flat bottom. For a dual transducer system, 220° angular coverage or 10 times the water depth is achieved on a flat bottom.

    View full details

    READ MORE

    COMPONENTS

    The EM 2040 MKII is a modular system, fully prepared for upgrading to cater for more demanding applications.

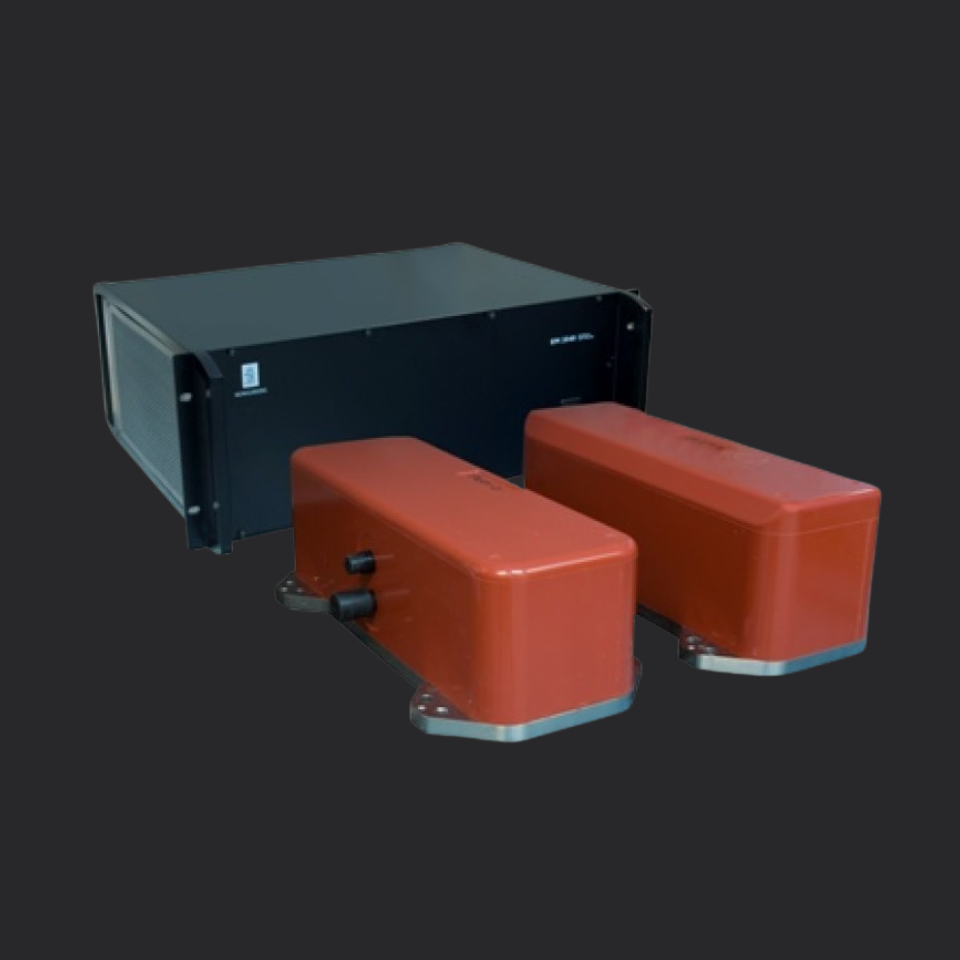

    The basic system has four units :

    the transmit transducer

    the receive transducer

    a processing unit

    a hydrographic workstation

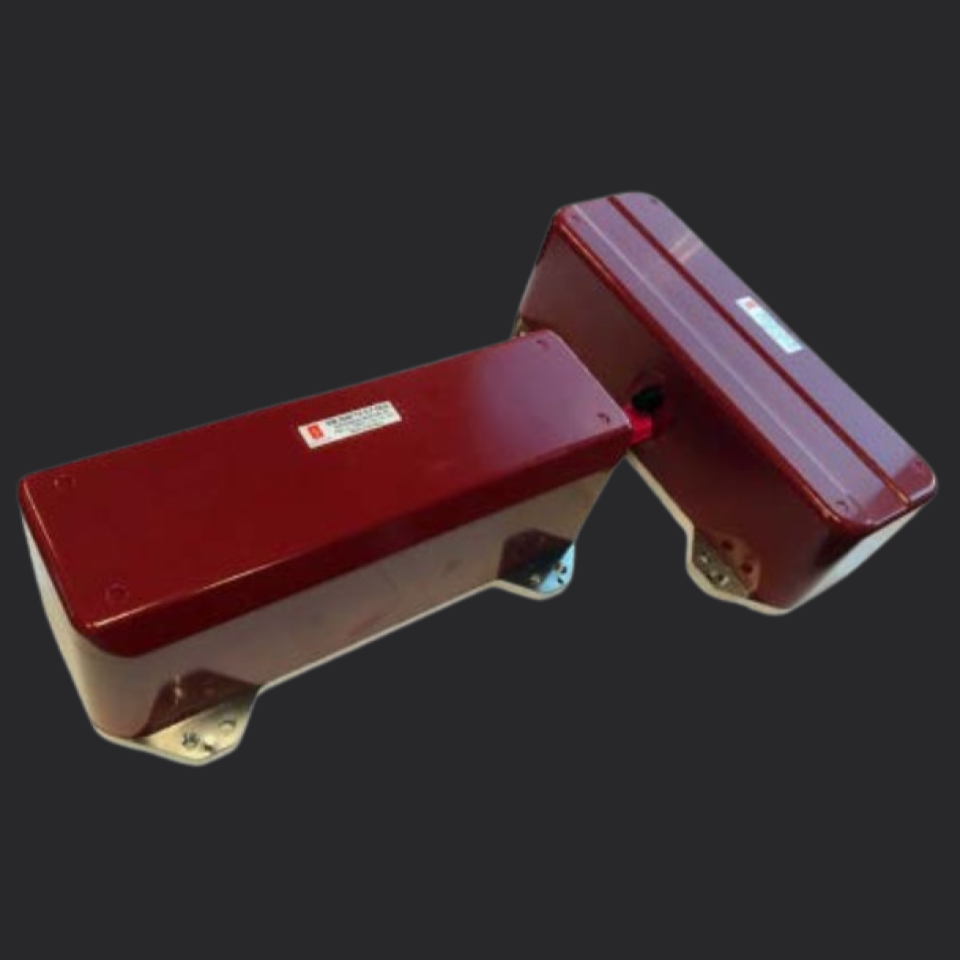

    The EM 2040 MKII receiver is 0.5° and is delivered with a 0.25° or 0.5° transmitter(s). The transmit fan is divided into three sectors pinging simultaneously at separate frequencies ensuring a strong and beneficial dampening of multibounce interference.

    As an option the EM 2040 MKII can be delivered with dual swath capability, allowing a sufficient sounding density to meet survey coverage standards along track while maintaining a high vessel speed. A single transmitter with dual receiver setup fully exploits the unique angular coverage of our three-sector transmitter for full 220° angular coverage per ping.

    The specialised dual transmitter and receiver setup is ideal where mounting requires a large separation of receivers, where mounting the transmitter at the keel is not an option or for ROV pipeline surveying and free span detection. This configuration transmits on a single sector per transmitter with selectable frequency in steps of 10 kHz from 200 to 400 kHz.

    The standard depth rating of the EM 2040 MKII transducers is 6000 m, making it ideal for operation on subsea vehicles such as ROVs or AUVs. A 50m depth rated version without export restrictions is also available.

    KEY FEATURES

    Ultra high resolution

    MultiFrequency Mode

    Seabed image

    Wide frequency range

    Short pulse lengths, large bandwidth

    Roll, pitch and yaw stabilisation

    Transmit and receive nearfield focusing

    Depth rated to 6000 m. A 50 m depth rated version is also available.

    FM chirp

    Extra detections

    Water column display and logging

    Dual swath

    Dual RX

    Dual TX

    Easy to install

    TECHNICAL SPECIFICATIONS

    Frequency range: 200 to 700 kHz

    Max ping rate: 50 Hz

    Swath coverage sector: Up to 170° (single receiver) / 220° (dual receiver)

    Depth rating: 6000 metres and 50 metres versions available

    Beam patterns: Equiangular, equidistant and density and ultra high density

    No. of beams per ping: 512 (Single RX)/1024 (Single RX, Dual Swath)/2048 (Dual RX, Dual Swath)

    Roll stabilised beams: ± 15°

    Pitch stabilised beams: ± 10°

    Yaw stabilised beams: ± 10°
