QPS FLEDERMAUS

QPS FLEDERMAUS

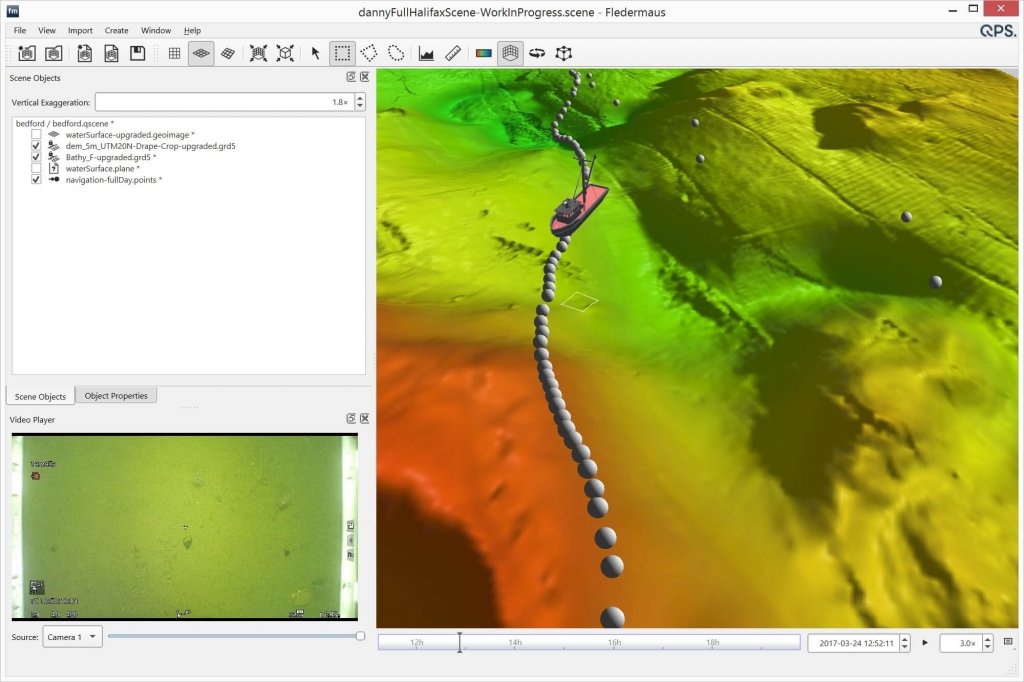

The ultimate in data fusion and communication - direct import for a wide variety of formats for extensive functionality and 3D and 4D visualization of gridded and ungridded data types, as well as ancillary information. Analysis tools allow for seafloor interpretation and characterization, object and surface change over time, object tracking, multibeam backscatter processing and mosaicking, cable and pipeline route planning. Export options include points, lines, polygons, and grids in industry-standard formats, high-resolution graphics, Google Earth KML and KMZ files, profiles for engineering analysis, and sounding, feature, and contact selections. Create videos and presentations with fluid flybys and direct image/text insertion.
View full details

READ MORE

NEW LOGGING FORMAT FOR EASIER POST-PROCESSING

SIS supports .KMall, the KONGSBERG logging format used by all of our EM systems. This format makes it much easier to post-process the logged data as it contains already calculated latitude, longitude, depth, time and ellipsoidal height. With SIS comes a complete set of documentation in .html format and examples in C++ and Python showing how to read the .KMall files. Software developers find this useful as it shortens the development time considerably.

BLUE INSIGHT

KONGSBERG has developed a Digital Ecosystem named Kognifai. Blue Insight is the solution which uses Kognifai to offer additional services in a cloud environment. Find out more kongsberg.com/maritime/blueinsight.

SIS 5 can send data to Blue Insight in real time, both remotely and during regular operation. Depending on the bandwidth and cost of the Internet connection, SIS 5 can be configured to send the right amount of data from the ship into Blue Insight in real time. Blue Insight is accessed through a web-browser so data can be processed and displayed anywhere on the Internet. Team collaboration and remote monitoring are now possible.

TOOLS PROVIDED BY SIS 5

  • System configuration
    Define all lever-arms and installation angles for all sensors.
  • System calibration
    Calibrate the installation for optimal performance, if and when needed.
  • Real time Digital Terrain Model, DTM
    SIS continuously generates a DTM which can be compensated for tide effects. This gives the operator a high detailed 3D-view of the terrain as the surveys progresses. All depth points are also available in full resolution 3D display in real time.
  • System monitoring
    SIS monitors all sensor input in real time. Any faults or dropouts are immediately reported to the operator.
  • Survey planning
    The enhanched Planning module in SIS has been redesigned to allow single-click operations. This means that almost all commands can be carried out with the mouse only. Survey plans are easy to exchange between the office and the boat, or between several boats.
  • Background charts
    Both GeoTIFF files and WMTS server input can be used to display background maps in SIS.
  • Helmsman's Display
    A separate Helmsman's Display is provided. This can be show either on a second screen or on a separate computer close to the helmsman.
  • SIS Remote
    Monitor and control one or more EM™-systems from a remote location, on shore or on another ship.
  • Connect to Blue Insight
    Use Blue Insight to monitor the survey progress from all boats in near real time from anywhere on the Internet with the tools provided by Earth Analytic.

LICENSED OPTIONS TO SIS

  • Water column logging (for EM 124, EM 302, EM 710, EM 712 and EM 2040).
  • SIS Remote

SYSTEM INFORMATION

  • Operating systems supported: Windows 10 64-bits
  • Hardware supported: HWS
  • License control: By dongle connected to the USB port

ECHO SOUNDERS SUPPORTED

  • All EM™-systems
